Description

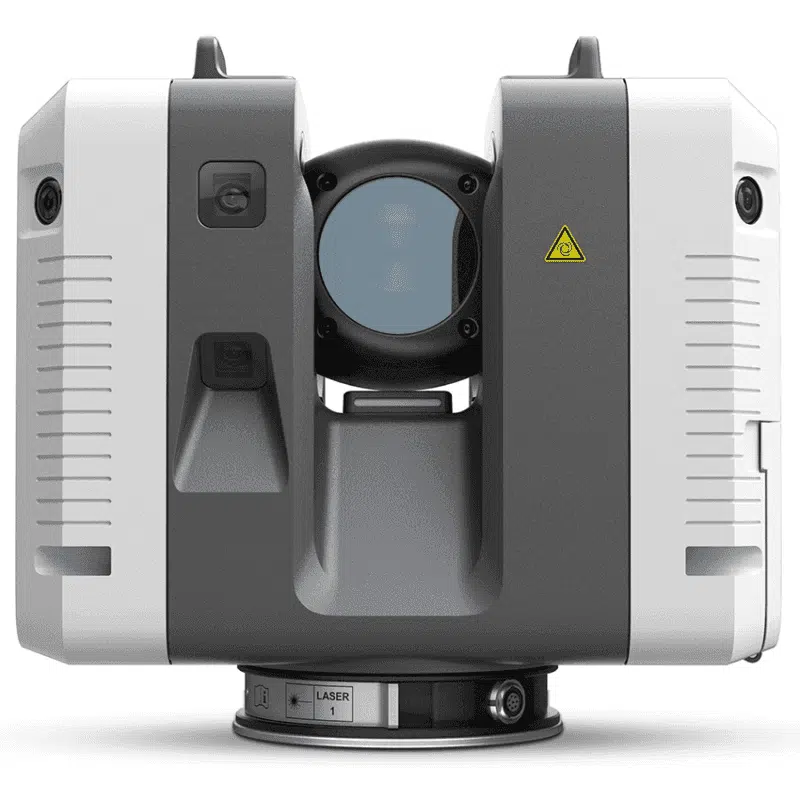

The Leica RTC360 3D reality capture solution empowers users to document and capture their environments in 3D, improving efficiency and productivity in the field and office through fast, simple-to-use, accurate, and portable hardware and software. The RTC360 3D laser scanner is the solution for professionals to manage project complexities with accurate and reliable 3D representations and discover the possibilities of any site.
The Leica RTC360 3D laser scanner utilizes a unique reality capture solution that empowers users to document and capture their environments in 3D. This scanner improves efficiency and productivity in the field and in the office through fast, accurate, portable, and simple-to-use hardware and software.
The RTC360 3D laser scanner is the solution for professionals to manage project complexities with accurate and reliable 3D point clouds. Discover the possibilities of utilizing this Leica scanner on-site.
On-Site Benefits
- Highly portable, highly automated, intuitive, and designed for maximum productivity.
- The RTC360 is much more than just a high-performance 3D laser scanner. The scanner combines with Leica Cyclone FIELD 360 mobile-device app for edge computing for automatically registering scans in real-time and Leica Cyclone REGISTER 360 office software to integrate your 3D model seamlessly into your workflow.
- Capture scans in less than two minutes, including enriching High-Dynamic Range (HDR) imagery.
- Automatically record your moves from station to station to pre-register your scans in the field without manual intervention.
- Augment your data capture with information tags. You were illustrating the opportunities this 3d laser scanner provides for better planning, reflecting site reality, and boosting your teams’ situational awareness.
Leica RTC360 3D Laser Scanner Features:
Fast
The new Leica RTC360 laser scanner makes 3D reality capture faster. With a measuring rate of up to 2 million points per second and an advanced HDR imaging system, the creation of colored 3D point clouds can be completed in under two minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated data transfer from site to office reduce time spent in the field and further maximize productivity.
Agile
The Leica RTC360 scanner’s portable design and collapsible tripod are small and lightweight, so it’s compact enough to fit into most backpacks, and ready to be taken anywhere. Once on-site, easy-to-use, one-button operation makes for fast, hassle-free scanning.
Precise
Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in various applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site.
Pre-registration in the field
As part of the RTC360 solution, the Cyclone FIELD 360 app links the 3D data acquisition in the field with the laser scanner and data registration in the office with Cyclone REGISTER 360. On-site users can automatically capture, register, and examine scan and image data. The user interface combines easy handling of complex calculations with graphical user guidance, offering a remarkable user experience for novice users.
Leica RTC360 Product Specifications | |
3D Laser Scanner | High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real-time registration |
Data acquisition | < 2 min for complete full-dome scan and spherical HDR image at 6mm @ 10m resolution |
Real time registration | Automatic point cloud alignment based on real-time tracking of scanner movement between setups based on Visual Inertial System (VIS) by the video-enhanced inertial measurement unit |
Double scan | Automatic removal of moving objects |
Distance measurement | High-speed, high dynamic time of flight enhanced by Waveform Digitizing (WFD) technology |
Laser Class | 1 (in accordance with IEC 60825-1:2014), 1550nm (invisible) |
Field of view | 360° (horizontal) / 300° (vertical) |
Range | Min. 0.5 – up to 130 m |
Speed | Up to 2‘000‘000 pts/sec |
Resolution | 3 user-selectable settings (3/6/12mm @ 10m) |
Accuracy * | Angular accuracy 18” Range accuracy 1.0 mm + 10 ppm 3D point accuracy 1.9 mm @ 10 m 2.9 mm @ 20 m 5.3 mm @ 40 m |
Range noise * ** | 0.4 mm @ 10 m, 0.5 mm @ 20 m |
Camera | 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° x 300° spherical image |
Speed | 1 minute for full spherical HDR image at any light condition |
HDR | Automatic, 5 brackets |
Visual Inertial System | Video enhanced inertial measuring system to track the movement of the scanner position relative to the previous setup in real-time |
Tilt | IMU-based, Accuracy: 3‘ for any tilt |
Additional sensors | Altimeter, Compass, GNSS |
On scanner | Touch-screen control with finger touch, full-color WVGA graphic display 480 x 800 pixels |
Mobile devices | Leica Cyclone FIELD 360 app for iPad or Android tablets including: – Remote control of scan functions – 2D & 3D data viewing – Tagging – Automatic alignment of scans |
Wireless | Integrated wireless LAN (802.11 b/g/n) |
Data storage | Leica MS256, 256GB exchangeable USB 3.0 flash drive |
Housing | Aluminum frame and side covers |
Dimensions | 120mm x 240mm x 230mm / 4.7‘‘ x 9.4‘‘ x 9.1 |
Weight | 5.35 kg / 11.7 lbs, nominal (w/o batteries) |
Mounting mechanism | Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter/survey tribrach adapter available |
Internal battery | 2 x Leica GEB361 internal, rechargeable Li-Ion batteries. Duration: Typically up to 4 hours Weight: 340 g per battery |
External | Leica GEV282 AC adapter |
Operating temperature | 5° to +40° C |
Storage temperature | 40° to +70° C |
Operating low temperatures **** | 10° to +40°C |
Dust/Humidity *** | Solid particle/liquid ingress protection IP54 |
WHAT THE BUNDLE OFFERS:
- Leica RTC360 Laser Scanner
- RTC360 Scan Head
- Transport Container for RTC360 Laser Scanner & Accessories
- 4 Lithium-Ion Batteries
- Charger Prof 5000. Charges Up to 4 batteries, Including Power Cable
- 2 Flash Drives – 256 GB
- RTC360 Rain Cover
- 1 yr RTC360 Laser Scanner CCP Basic
- Transport Container
- GEB361 Lithium-Ion Battery
- Rain Cover
- System USB Card
- GST80 Lightweight Tripod
- GVP730 Backpack
- GAD121 Tribrach Adapter
- GAD122 Adapter
- RTC360 Quick Guide
