Description

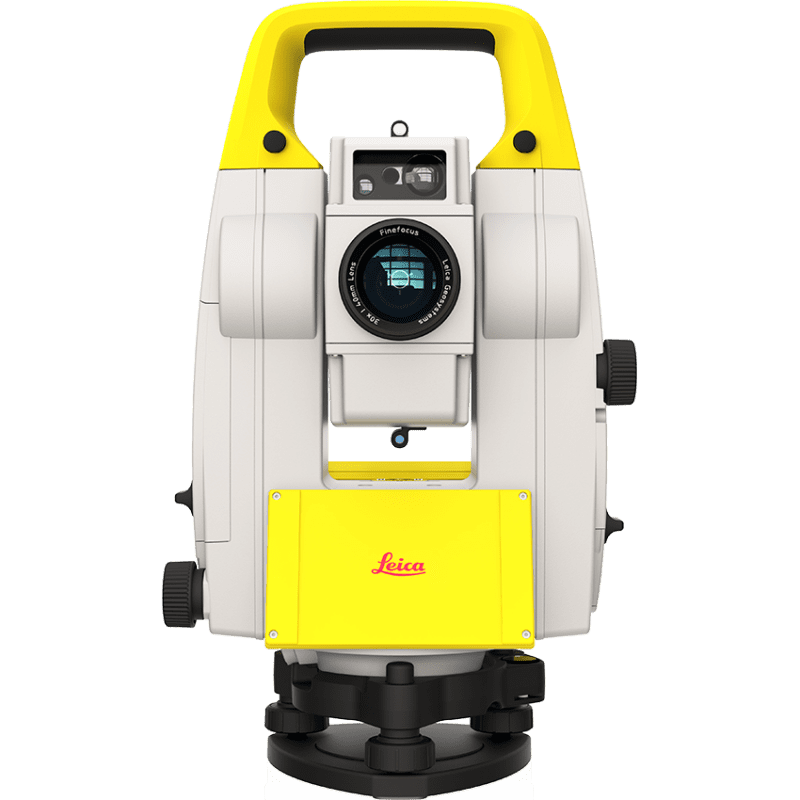

With the Leica iCON iCT30, Leica Geosystems introduces a construction layout tool that is tailored to any layout task in the building construction industry.
The iCT30, in combination with Leica iCON build field software, is an easy-to-use solution that facilitates the move from traditional analog layout methods to modern digital techniques. Even though the iCT30 is highly accurate, it is durable enough to withstand the rigors of challenging building-construction environments.
Increased complexity in construction projects and the strong trend towards digitalization and Building Information Modeling (BIM) in the Building Construction industry make digital layout methods and processes crucial. Facilitating the transition from conventional analog measurement methods to modern digital layout techniques, Leica Geosystems developed the easy-to-use construction layout tool, Leica iCON iCT30, to bring digital and automated layout technology to any construction site.
The iCON iCT30 allows users to:
- Move away from conventional analogue layout methods and easily adopt modern digital layout
- Increase productivity due to one-person operation of the iCON iCT30
- Layout lines for various foundation, structure and building exterior applications
- Layout interior drywall and insulation installations
- MEP layout of hanger locations for HVAC and duct work, inserts and slits for sheet metal work
- Fully automatic layout routines of points on floor or ceiling and lines for pipe wall penetrations
With a measurement range of up to 80 m and an angular accuracy of 9”, the iCT30 meets most requirements for layout applications. Forget about interruptions of line of sight or congestions that slow down the layout process. The iCT30 is specifically designed to robustly handle difficult site conditions.
The iCON iCT30 – digital layout

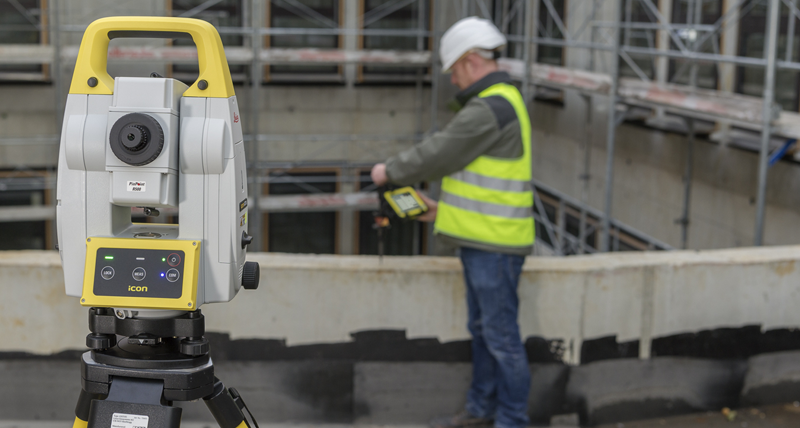

Construction-tailored
Leica iCON build field software has been designed specifically for use in the building construction industry. The software offers streamlined use of fully rendered IFC models, allowing the operator to work with them directly and easily in the field. This motorized layout tool makes tackling complex layouts, such as HVAC and MEP installations, easy.
Maximum uptime
Layout and measure more points per day. The iCT30 features the best prism lock for construction layout tools to protect against interferences from foreign reflections. When sight to the prism is lost, AutoSearch automatically searches and finds prism, eliminating time spend on manual search initiation. The integrated telescope simplifies and thus speeds up reflectorless layout tasks and the aiming to certain spots.
One-person Operation

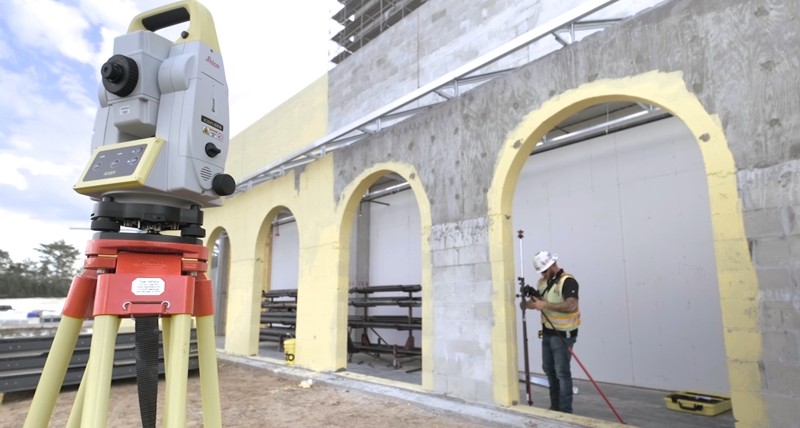

With the robotic construction layout tool iCT30, only one person is required to fulfil the layout tasks. Easy-to-use hardware and software enables the whole workforce on your site to layout, no matter their experience level.
Leica iCON iCT30 features
- 4-button keyboard for simple operation
- Prism search by AutoSearch
- Most stable lock on prism for construction layout tool
- Tailored iCON build software with streamlined use of fully rendered models in IFC format
- Telescope for simpler aiming
What’s included:
- 1 x 879463 iCT30 9″ R80, iCON layout tool
- 1 x 866207 GVP737, Carry Case for iCR70/80
- 1 x 881756 Leica iCON iCT30 QG,Multil.1
