Description
The robotic Leica iCON iCS50 is a state-of-the-art construction tool to perform both simple and complex layout and 3D measurement tasks. The handling is easy to learn and immediately efficient to use. In combination with the smart accessories Leica vPole and Leica vPen, this becomes a very productive solution, as the time required for layout and measurement tasks, as well as the risk of errors, is minimized.
The Leica iCON iCS50 is the uncompromised solution for demanding construction layout. It delivers the platform’s highest accuracy and full robotic capability out of the box. Its dual-camera system provides both a panoramic overview and a high-zoom lens for complete site awareness and precise aiming. For professionals who require maximum performance and versatility from day one, the iCS50 is the definitive tool.
Features
- Use with Leica vPole : Essential for fully leveraging the iCS50’s capabilities, ensuring precise automatic positioning and error-free layout on-site.
- MEP & HVAC Layout and Installation : Fast and precise placement of critical points.
- As-built Measurements : Detailed data capture for documentation and project tracking.
- Structure and Equipment Placement : Ensures exact positioning of construction elements.
- High Precision & Performance : Robotic tracking and layout technology for maximum accuracy.
- Advanced Automation : Automatically places points and optimizes quality control.
- Connectivity & Compatibility : Works seamlessly with Leica iCON trades software and cloud platforms.
- Portability & Durability : Works seamlessly with Leica iCON trades software for smooth integration into construction workflows.
Advantages of the Leica iCON iCS60:
- One-person operation reduces staff resources and increases productivity
- Simplified measurement and layout process due to visual measurement technology
- Quickly ready for use due to the ‘auto-setup’ process
- Easy relocation with Leica vTargets
- Leica vPole with visual-based target tracking, automatic tilt compensation and auto-height detection to layout points even faster
- Leica vPen, the unique wireless measuring pen for creating digital templates
- Fast and efficient data capturing with all details for interior finishing
- Flexible use of laser technology and Leica vPole or Leica vPen
- Easy-to-use, industry-specific Leica iCON trades software for efficient workflows, seamless data flow and clear documentation
Areas of application:
- Layout lines for various foundation, structure and building exterior applications
- Layout interior drywall and insulation installations
- MEP layout of hanger locations for HVAC and duct work, inserts and slits for sheet metal work
- Fully automatic layout routines of points on floor or ceiling and lines for pipe wall penetrations
- As-built measurement with all details for interior finishing, e.g. kitchen building, staircase construction, window and door installation
- Creation of digital templates for countertops, splashbacks, etc. (including offsets, roundings and cut-outs)
Leica vPen – Ideal for Digital Templating
This unique wireless measuring pen is very versatile and extremely precise (± 1 mm accuracy at 10 m). You can use it to measure on any surface, including glass, by simply touching the point you want to measure. It also enables you to measure edges without setting up target plates. The unique visual-based target tracking ensures that the Leica iCON iCS50 always stays connected to the Leica vPen.
The unique solution combines multiple measurement technologies to ensure precise and reliable data collection via wireless Leica vPen, laser, line, or area scans. In addition, it does not matter which direction you are moving the Leica vPen. Its unique pattern is always reliably detected by the Leica iCON iCS50.
The Leica iCS50 is packed with features, from precise 2D and 3D data capture to visual-based targeting, automatic photo documentation, and flexible laser integration for top-tier accuracy.

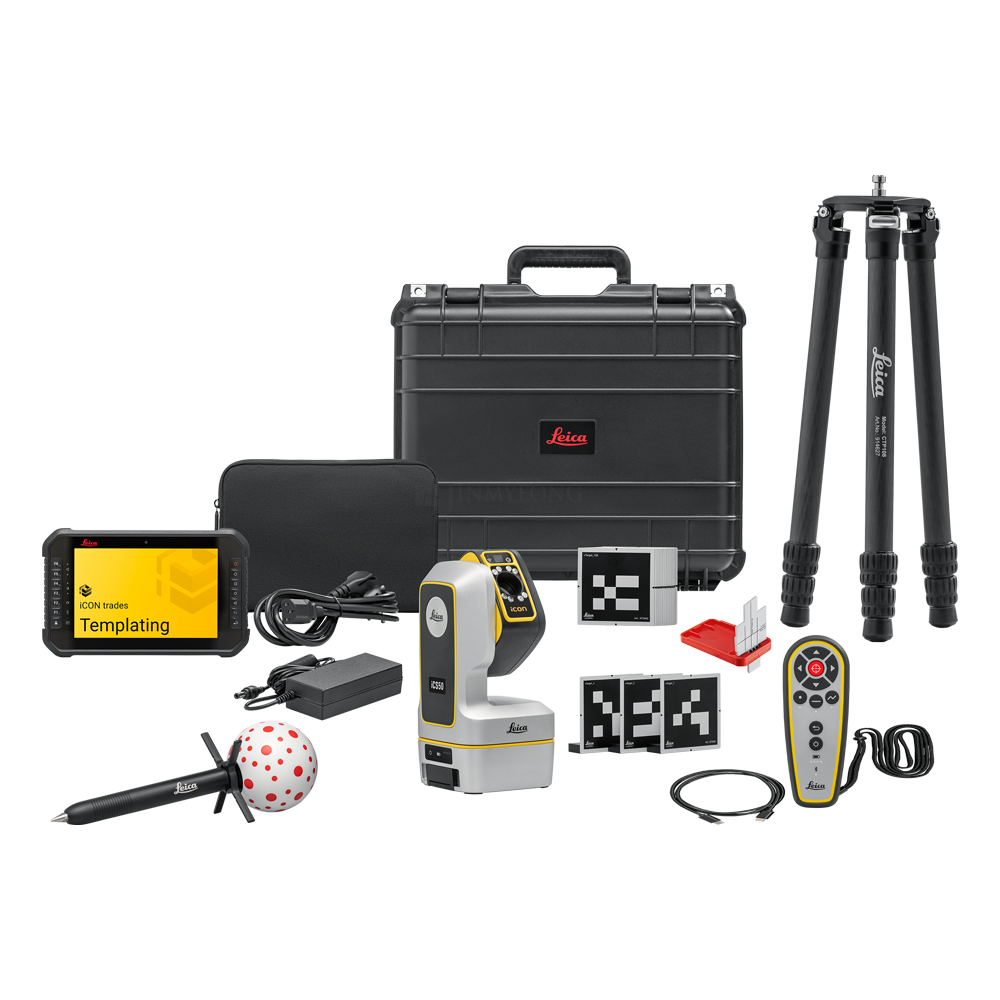

Include:
- Leica iCON iCS50
- Leica iCON trades for Layout Pro software
- Charger for indoor use
- Leica CSX8 tablet incl. pouch and holder
- GZM3 target plate
- vTarget plates incl. stands
- vTarget stickers
- Carry case incl. backstraps
- Leica wooden tripod
- Leica GAD122 quick mount adapter
- Leica vPole incl. pole tilt compensation and auto-height
- iCON Trades 1 Year Subscription, iCON Trades 1 Year Subscription with Measure Option,
- iCON Trades 1 Year Subscription with Marking Option, iCON Trades 1 Year Subscription with
- Layout Option, iCON Trades 1 Year Subscription with Cloud Connect Option, iCON Trades 1
- Year Subscription with BIM Objects Option
- vTarget Magnetic Stand, vTarget Plate, GZM3 Target Plate, GST101 Wooden Heavy Duty
- Tripod, GAD122 5/8″ Tripod Adapter, Carry Case for iCS20/50 Back Straps, Construction Pole for iCON vPole, Construction Pole Tip, vSphere for iCON vPole, Leica CSX8 Tablet Holder,
- Leica CSX8 Tablet Holder Clamp, Leica CSX8 Tablet
