Description

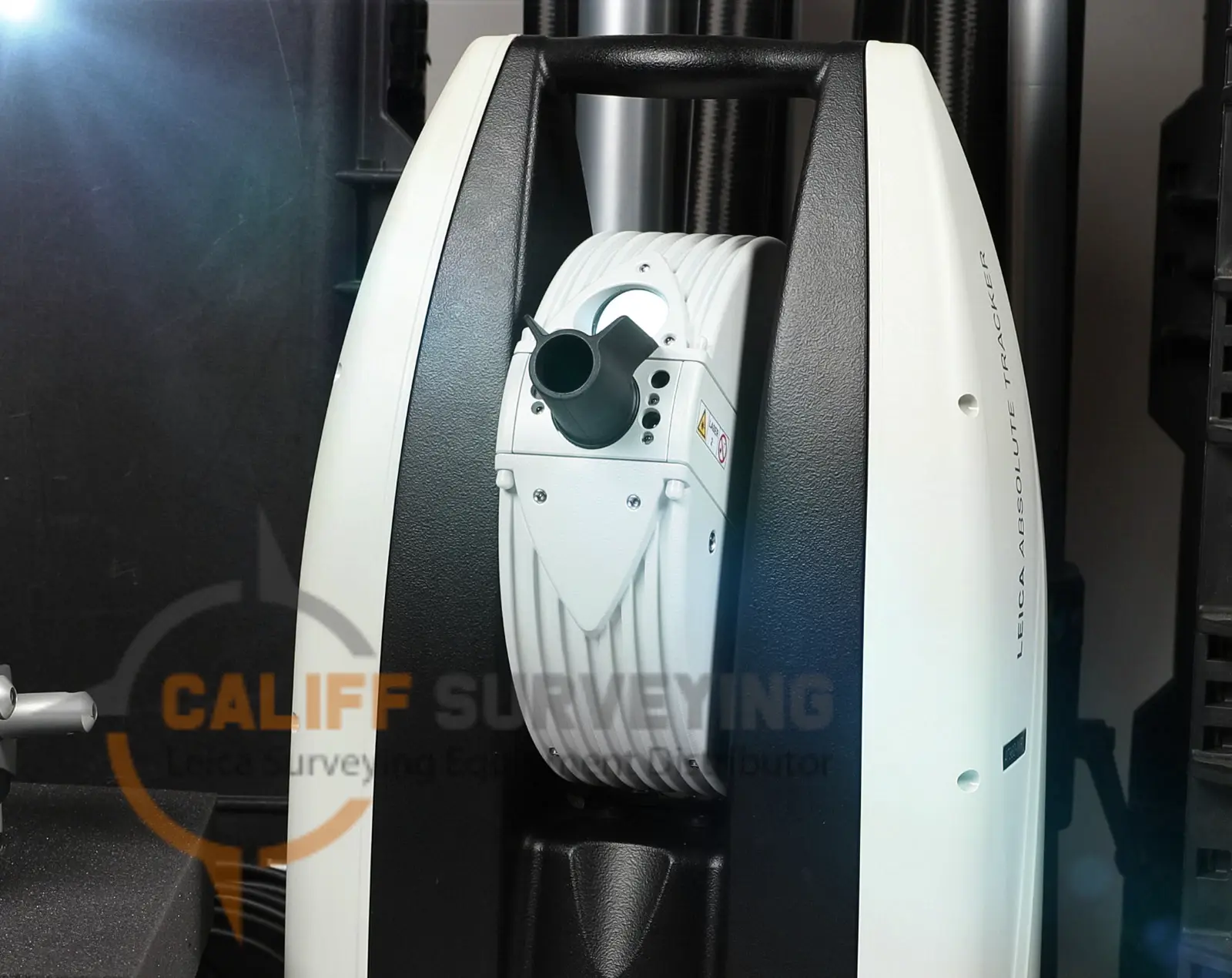

The Leica AT960-MR Absolute Tracker is an all-in-one laser tracker that fits in a single flight case. This system offers fast and dynamic measurement as a standard feature.
A complete solution for six degrees of freedom (6DoF) probing, scanning, automated inspection, and reflector measurement exists. You can easily transport and power up this tracker wherever you take it. Dynamic features and flexible functionality give users absolute speed, accuracy and portability.
The Leica AT960-MR Absolute Tracker has wireless communication and can run on a battery. Its design eliminates the need for long setups.

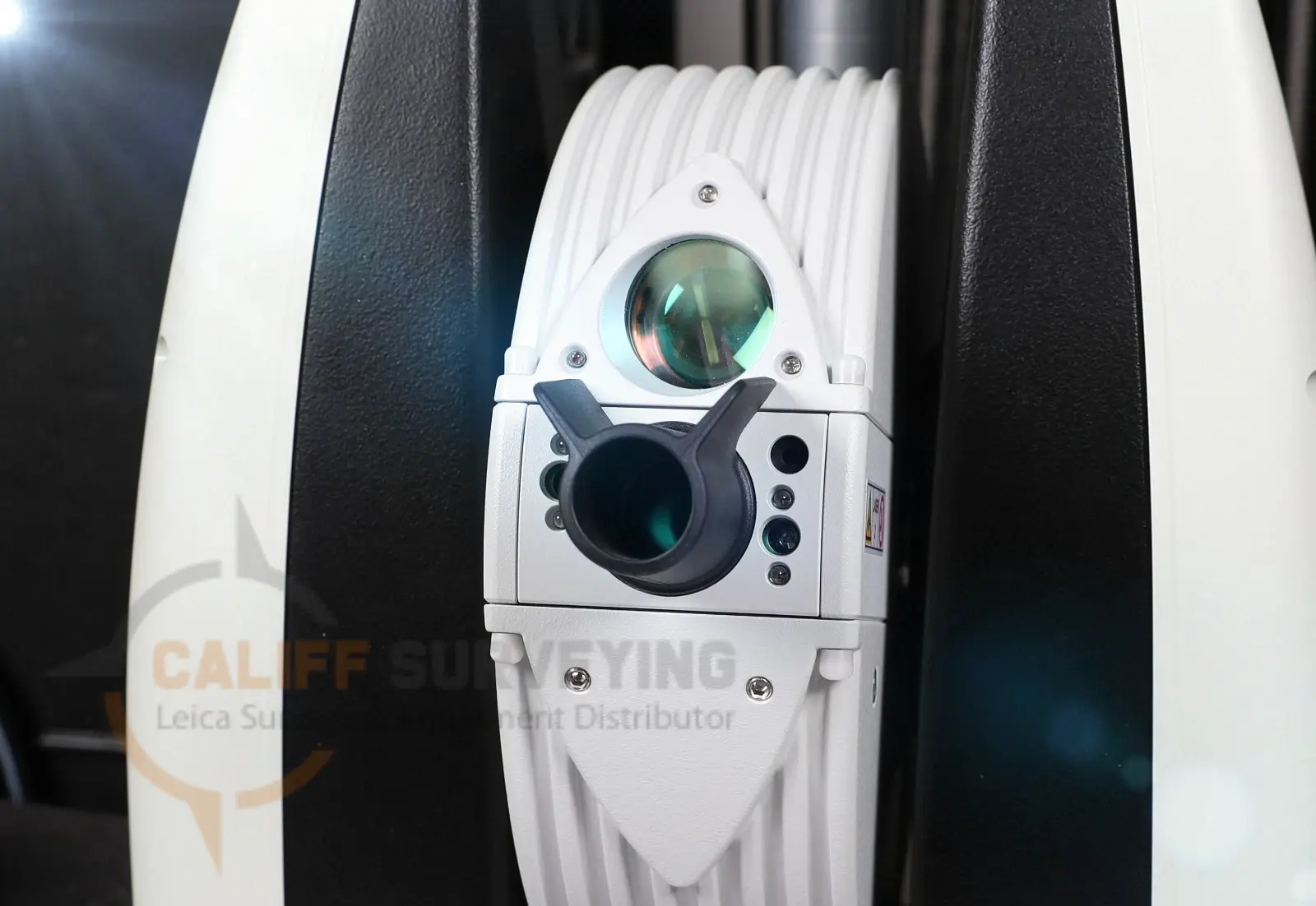

The Leica Absolute Interferometer (AIFM) enables fast, precise measurements of moving targets. Its PowerLock function quickly restores the beam without needing user help. This feature lowers the workload for operators and reduces training needs.
Intuitive touch-screen controls minimise the potential for user error, saving time, effort and money. Check-and-compensation architecture allows for simple adjustments in the field. A strong design ensures operations meet specifications with little need for calibration and servicing.
When used with the Real-Time Feature Pack and Leica T-Mac, the AT960 becomes a laser tracker. This solution meets the precise measurement data needs of advanced automated installations.
The EtherCAT protocol is well-known in the industry. It allows for the delivery of 6DoF measurement data. This data includes accurate timestamps and can be output at up to 1000 Hertz. Known as 7DoF measurement data, this enables real-time machine control within even highly dynamic robotic setups.
The AT960 has a measurement volume of up to 160 meters in diameter. It works with the Leica T-Probe, Leica T-Mac, and Absolute Scanners. This flexibility lets it handle many inspection tasks.
It works well in quality labs and on production lines. It can be used in factories and in the field. This ensures users have the right tool for any measurement challenge.
Leica AT960-MR Absolute Tracker FEATURES AND BENEFITS
- All-in-one design
The compact all-in-one unit includes built-in measurement equipment. It consists of the Leica T-Probe, Leica T-Scan, and Leica T-Mac. This ultra-portable design makes it easy to transport and measure anywhere.
- PowerLock
The line of sight is automatically restored within a +/-5 degree view. This requires no user action. It ensures ease of use and great performance, even in crowded areas.
- Battery power
The independent hot-swap battery power supply lets you set up quickly and easily without cables. This makes it portable and flexible. It can last for up to a full day’s shift, no matter where you need the tracker.
- Wi-Fi
Built-in Wi-Fi makes setup easy and allows communication with the PC for wireless use. It also offers remote control via laptops, tablets, or smartphones, allowing one user to operate the tracker.
- IP54
The IEC-certified sealed unit protects against dust and other contaminants. This allows the tracker to measure well in tough environments.
- MeteoStation
Integrated environmental unit monitors conditions including temperature, pressure and humidity to compensate for changes and ensure accurate measurements regardless of external factors.
- Overview camera (OVC)
High-resolution color OVC lets operators see the tracker’s view from a distance. They can find targets and measure them to fixed reflectors. This includes handling multiple spots in one image. It is perfect for static hidden-point devices or for documentation.
- Orient to gravity (OTG)
The OTG function lets users measure with the Z-axis aligned to gravity. This is great for leveling and alignment tasks, like building and inspecting tool and jig fixtures.
- Absolute Interferometer
The Absolute Interferometer (AIFM) is a single distancing unit. It combines the accuracy of a distance meter with the speed of an interferometer. This allows for quick, accurate readings without a home point.
- 1 kHz data output
Real-time architecture with dynamic performance allows a measurement rate of up to 1,000 points per second. This enables faster and more detailed data capture.
- Real-Time Feature Pack
Enhance the AT960 with 7DoF data collection to enable real-time machine guidance.
- Integrated mini variozoom
Best of the best

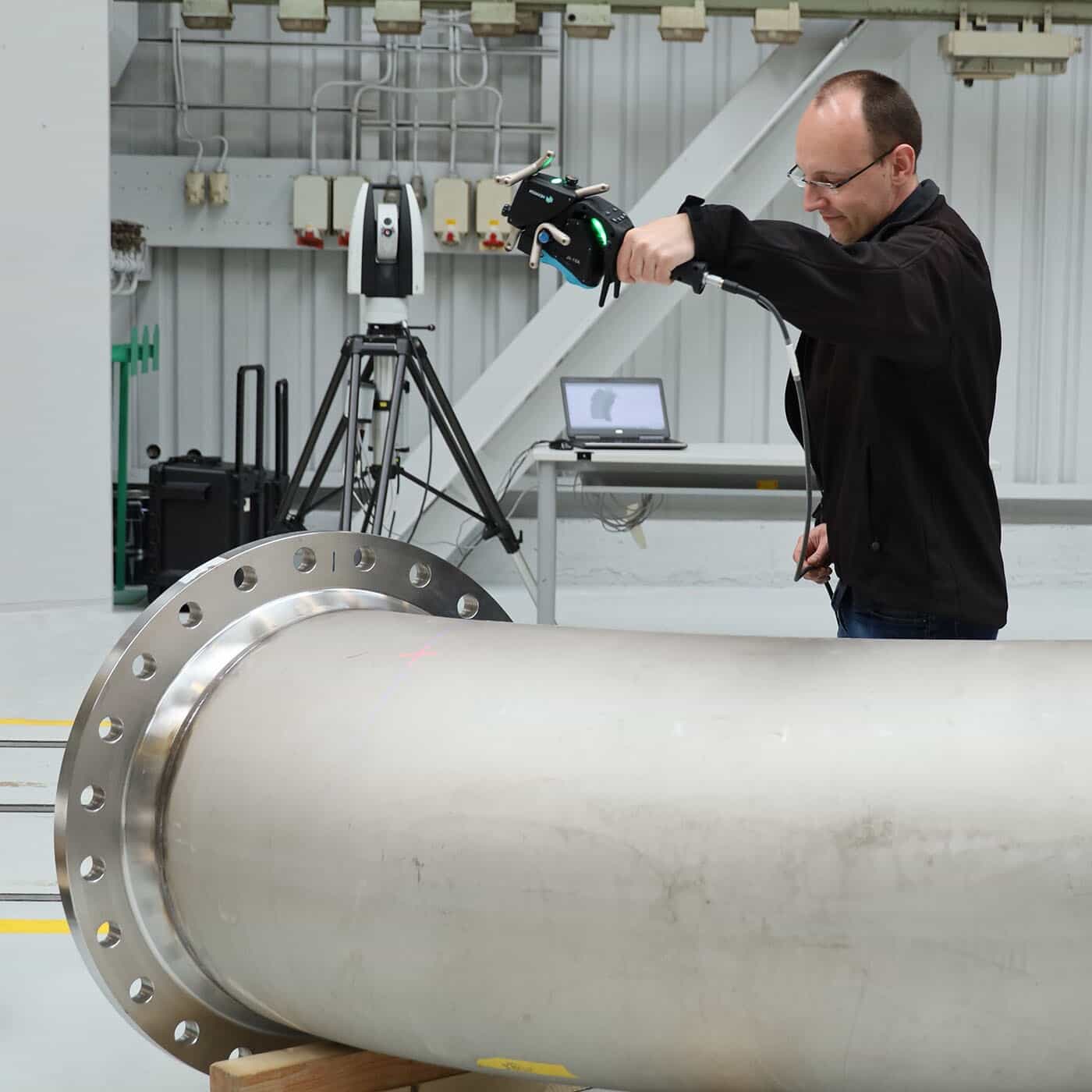

The Leica Absolute Tracker AT960 is a robust, all-in-one laser tracker that fits in a single flight case.
Offering high-speed dynamic measurement as standard, it is a complete solution for six degrees of freedom (6DoF) probing, scanning, and automated inspection as well as reflector measurement.
Collecting and using 3D point cloud data

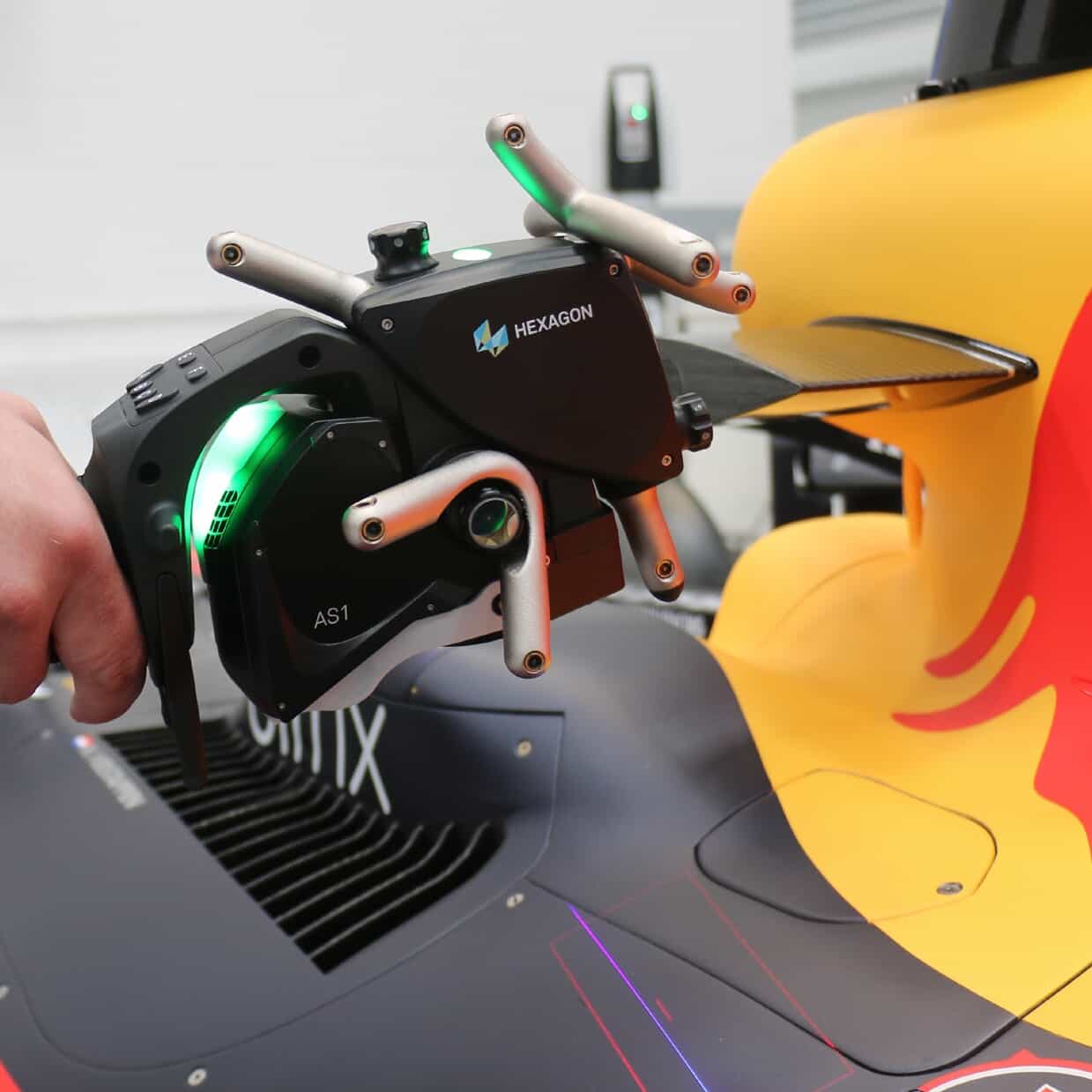

The scanner digitises a part by projecting a laser onto it, and then detecting and analysing the properties of the light reflected. This information is interpreted as millions of individual data points that together represent the geometry of the scanned surface and features.
Laser scanning in an industrial metrology context can be used for several distinct purposes that fall into two broad categories.
MODELS
- AT960-SR
The AT960-SR has a 3D measurement volume of up to 12 meters. It also has a 6DoF measuring volume of up to 10 meters. This short-range model is made for users with smaller measurement needs. It provides better value for those users.
- AT960-MR
The AT960-MR has a 3D measurement volume of up to 40m in diameter. It also has a 6DoF measuring volume of up to 20m in diameter.
This model is the standard in its range. It offers a wide measurement scope with great speed and accuracy. Plus, it is competitively priced.
- AT960-LR
The AT960-LR has a 3D measurement volume of up to 160m in diameter. It also has a 6DoF measuring volume of up to 40m in diameter. This long-range model is built to provide high speed and accuracy. Users can take measurements over a huge area.
- AT960-XR
The AT960-XR has a 3D measurement volume of up to 160m in diameter. It also has a 6DoF measuring volume of up to 60m in diameter. This model is designed for applications that need a larger volume for high-performance 6DoF measurement.
Leica AT960-MR Absolute Tracker Key Specifications
- Models: Part of the AT960 series (SR, MR, LR, XR).
- Measurement Volume: Up to 40m (3D) / 20m (6DoF).
- Accuracy (Reflector): U(x,y,z) = ±15 µm + 6 µm/m (MPE).
- Distance Accuracy (AIFM): ±0.5 µm/m.
- Angle Accuracy: ±15 µm + 6 µm/m (MPE).
- Data Rate: Up to 1000 Hz (6DoF).
- Dynamic Lock: ±10 µm.
- Portability: Under 14kg (tracker only), battery-operated, Wi-Fi.
- Environmental: IP54 rated, integrated MeteoStation for condition monitoring (temp, pressure, humidity).
- Technology: PowerLock, Overview Camera (OVC).
- Compatibility: Works with T-Probe, T-Mac, T-Scan 5, scanners.

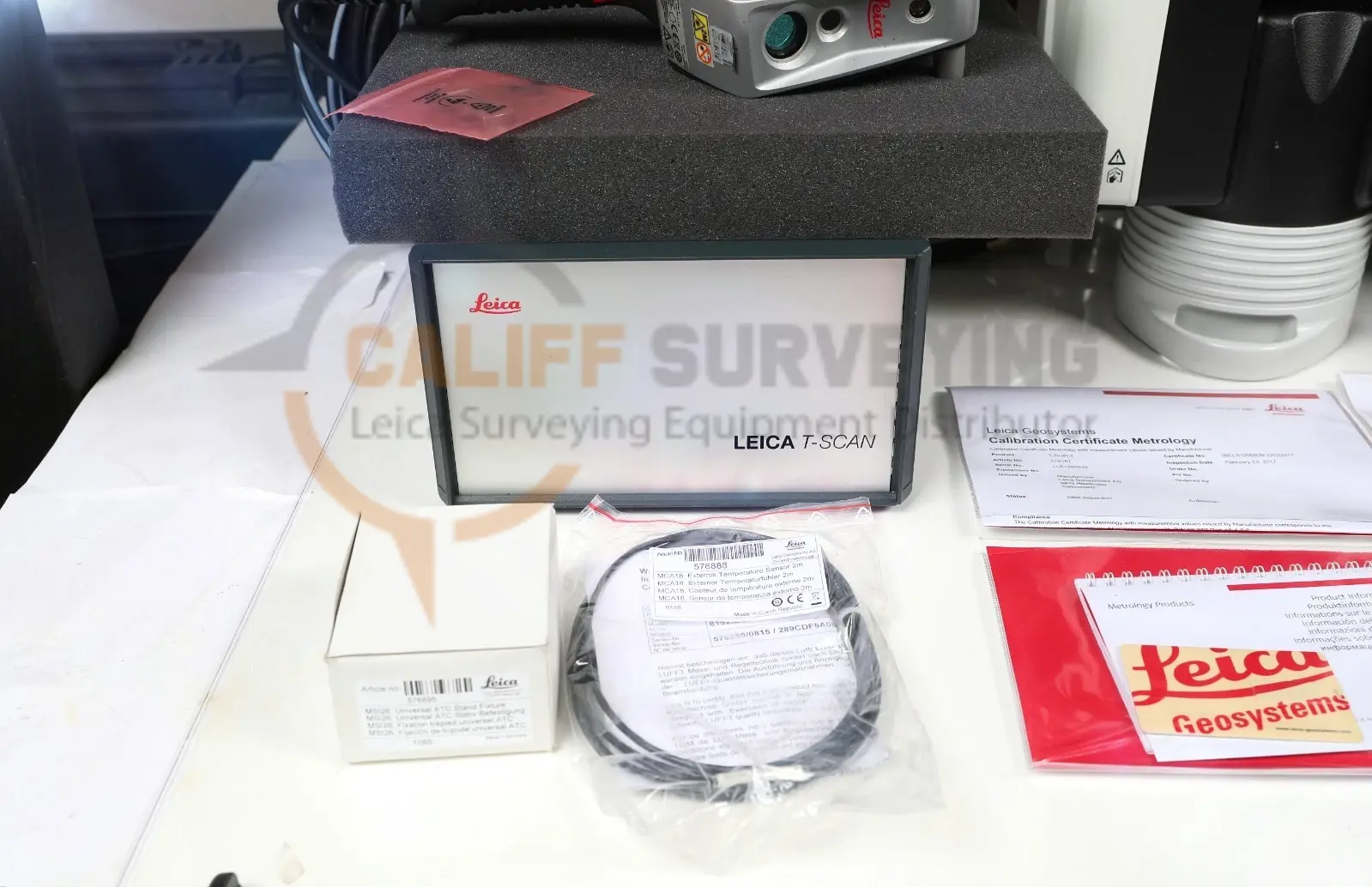

Include:
- Leica AT960-MR Absolute Tracker

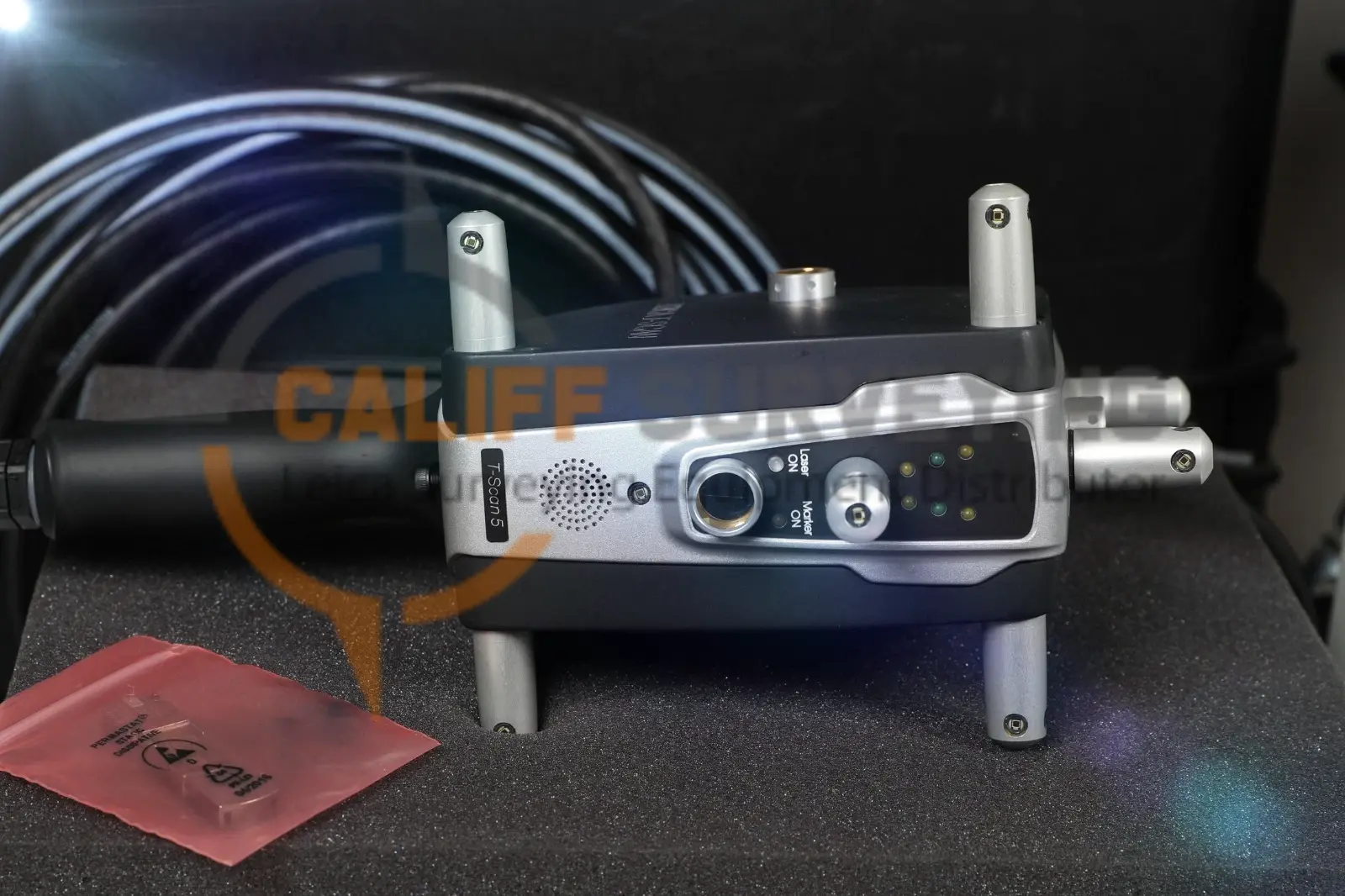

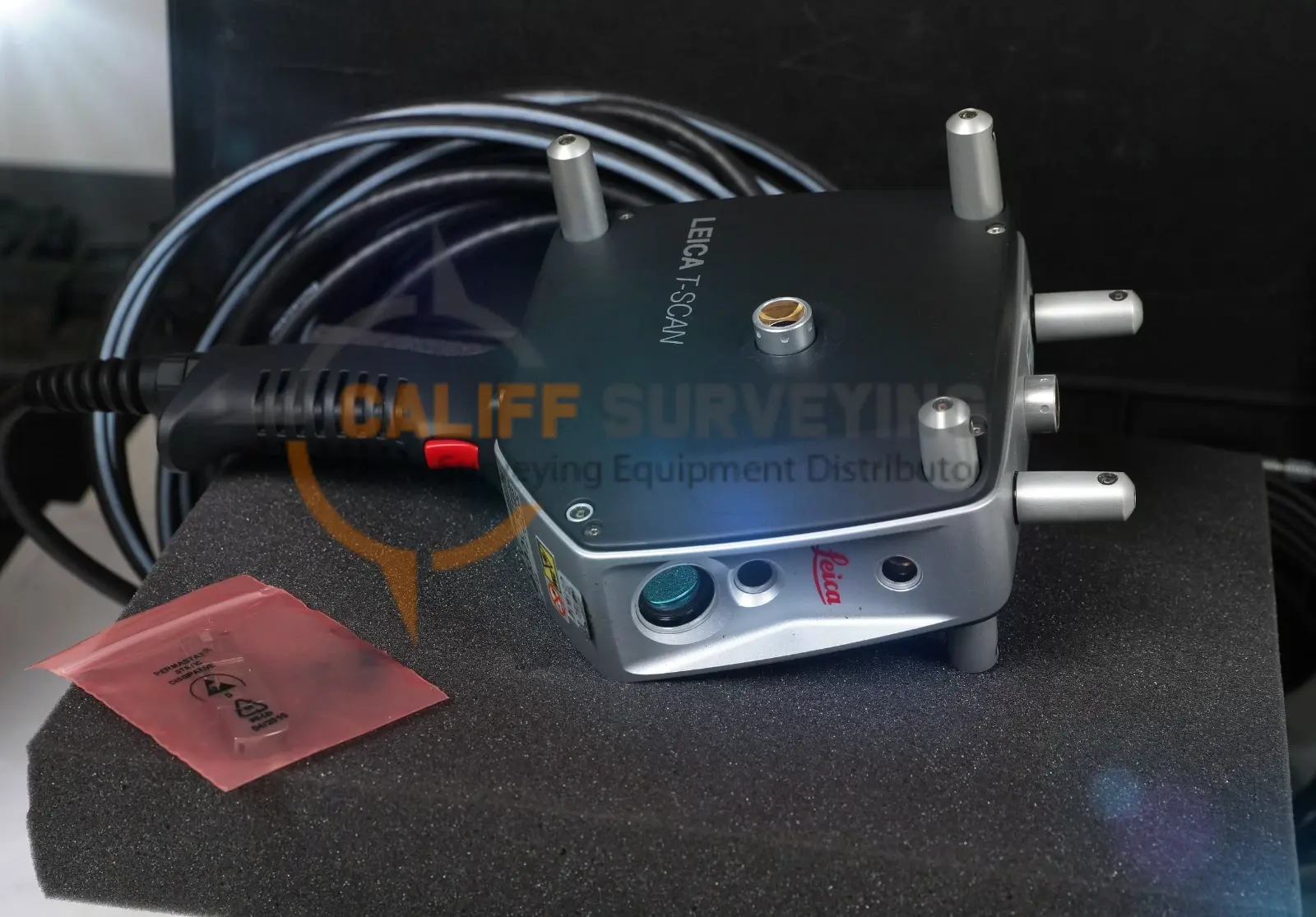

- Leica T-Scan 5
- Carbon Tripod
- Flight cases for all 3 units
- – 6DoF laser tracker unit AT960-MR

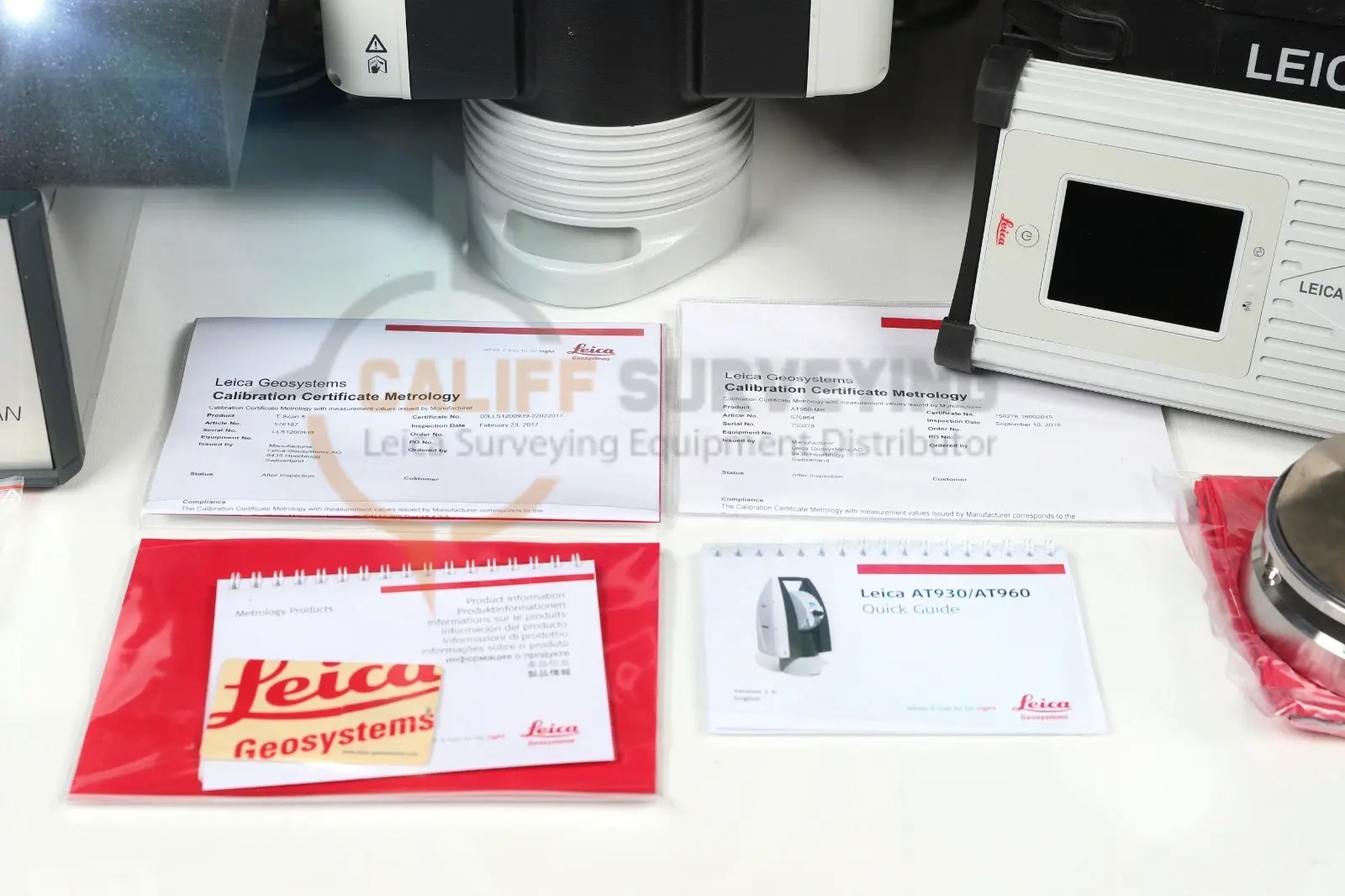

– ISO 17025 Calibration Certificate based on ISO 10360-10
– MTC51 AT930/AT960/ATS600 Transport Container (576891)

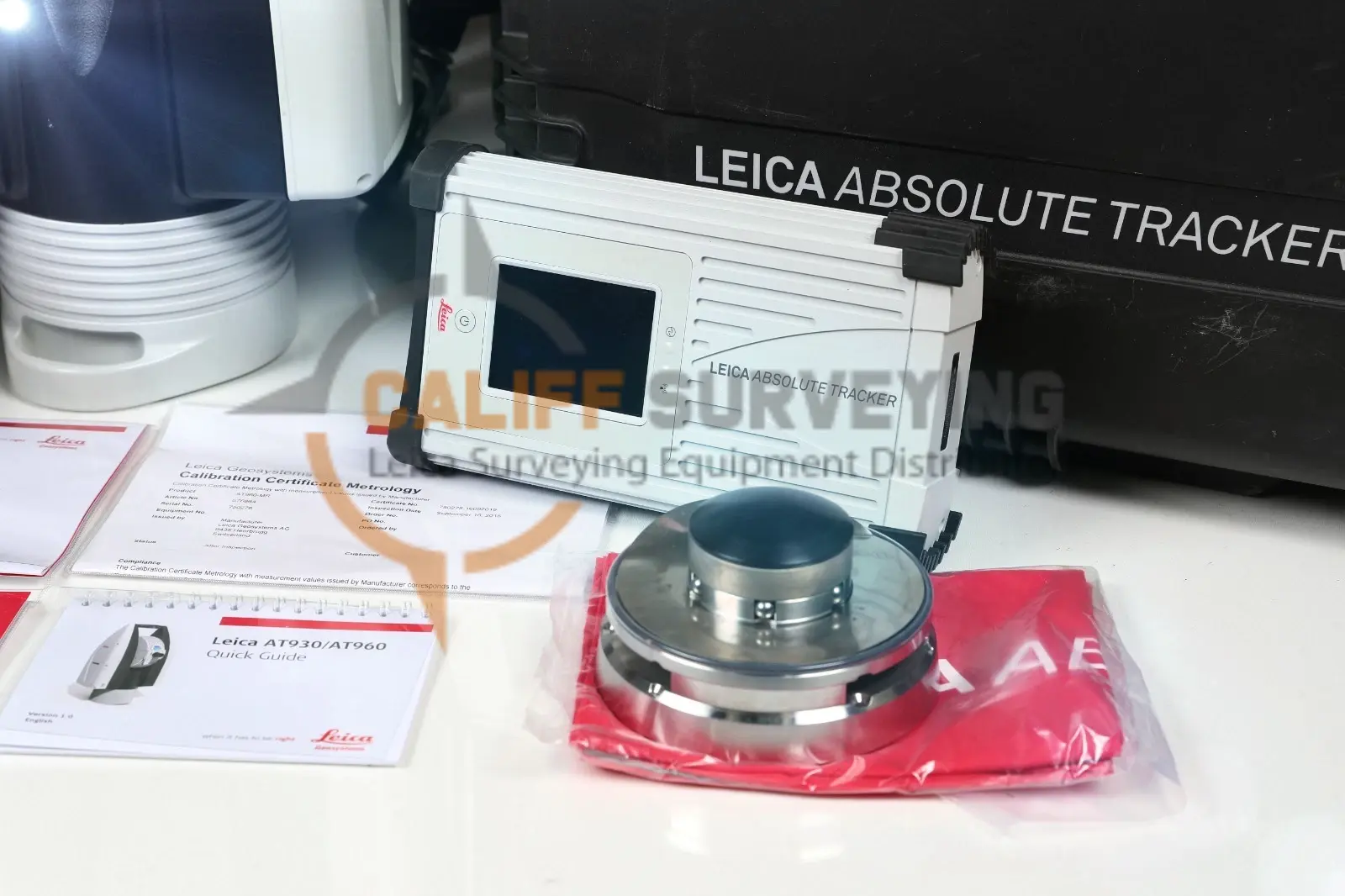

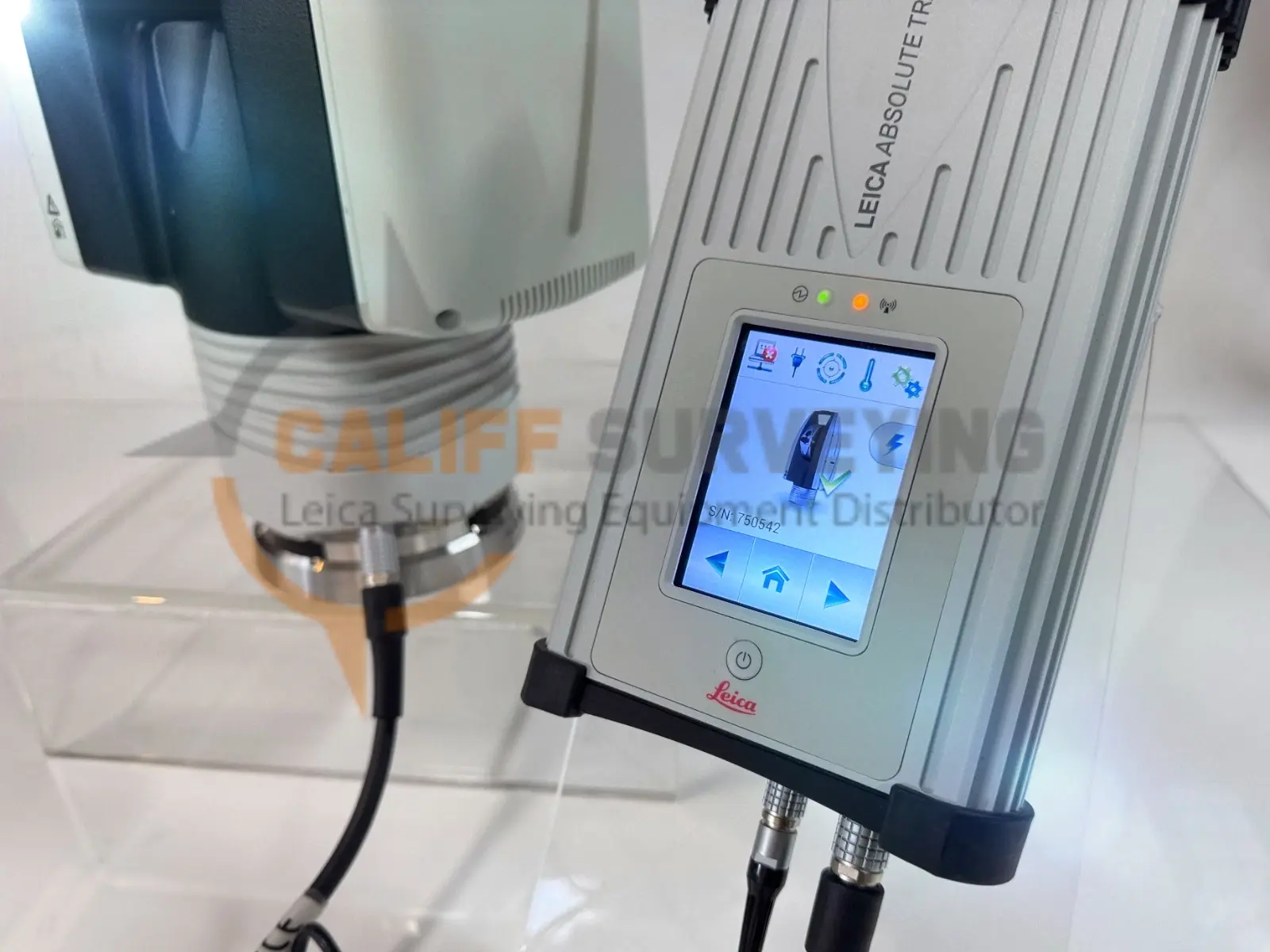

– AT9x0 Controller (577431)
– MPS21 Power Supply Unit (576873)
– MCS11 Sensor Cable – 1.5 m (576885)
– MCA134 LAN-Cable RJ-45 Cat6 – 5 m (575899)
– AT Quick Release Mount incl. Mandrel (576338)
– MCA18 External Temperature Sensor – 2 m (576888)
– Red Ring Reflector (RRR) – 1.5″ (575784)
– MSI26 Universal Stand Fixture (576895)
– MAT33 Optical Cleaning Kit (576898)
– Protective Sensor Cover (827057) - 24-month warranty*
- Metrology Asset Manager Advanced subscription (1 year)
*The 24-month factory warranty period is conditional on the performance of annual maintenance and recertification.
